URF48_QB-75WR3

Features

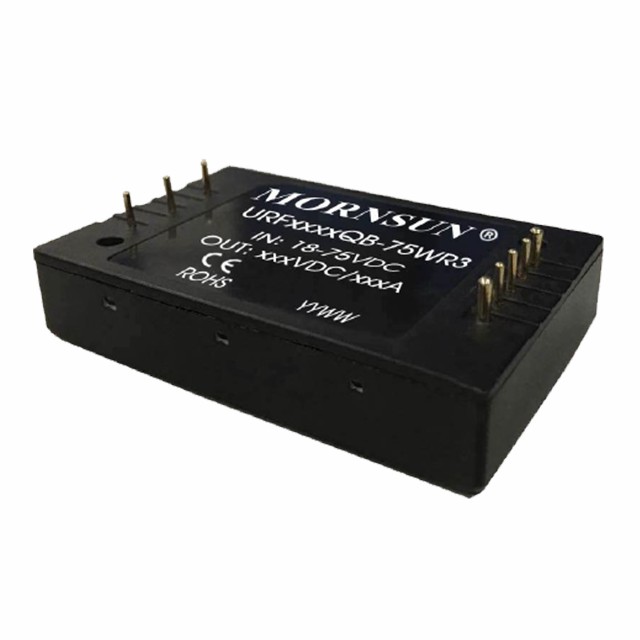

URF48_QB-75WR3 series are isolated 75W DC-DC converter products with a 4:1 input voltage range. They feature efficiencies of up to 93%, 2250VDC input to output isolation, operating ambient temperature of -40℃ to +85℃, input under-voltage, output over-voltage, short circuit, over-temperature and over-current protection. The products meet CLASS B of CISPR32/EN55032 EMI standards by adding the recommended external components, and they are widely used in applications such as battery powered systems, industrial controls, electricity, instrumentation, railway, communication and intelligent robotics.

URF48_QB-75WR3
MORE
Loading...

Swipe to view all →
Produkte No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) 3D Impression Drawing (.stp) Certification Datasheet Sample Buy
URF4805QB-75WR3 75 18~75 5 1 2250 DIP 61.8*40.2*12.7 - CE - URF4805QB-75WR3 - sample request buy on line
URF4812QB-75WR3 75 18~75 12 1 2250 DIP 61.8*40.2*12.7 - CE - URF4812QB-75WR3 - sample request buy on line
URF4815QB-75WR3 75 18~75 15 1 2250 DIP 61.8*40.2*12.7 - CE - URF4815QB-75WR3 - sample request buy on line
URF4824QB-75WR3 75 18~75 24 1 2250 DIP 61.8*40.2*12.7 - CE - URF4824QB-75WR3 - sample request buy on line
URF4848QB-75WR3 75 18~75 48 1 2250 DIP 61.8*40.2*12.7 - CE - URF4848QB-75WR3 - sample request buy on line

* Referenzparameter. Technsiche Details entnehmen Sie bitte dem zugehörigen Datenblatt

Produkte No.
URF4805QB-75WR3
URF4812QB-75WR3
URF4815QB-75WR3
URF4824QB-75WR3
URF4848QB-75WR3
