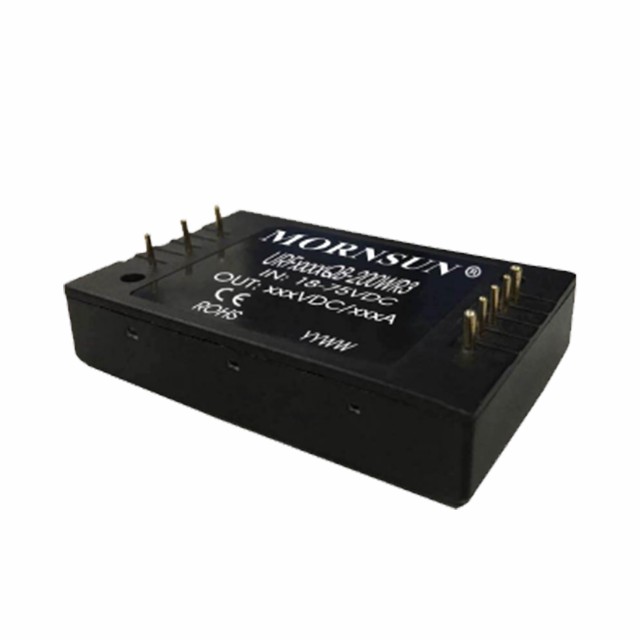

URF48_QB-200WHR3

Features

URF48_QB-200WHR3 series are isolated 200W DC-DC products with 4:1 input voltage. They feature efficiency up to 91%, 2250VDC input to output isolation, operating ambient temperature of -40℃ to +85℃, input under-voltage, output short circuit, over-current, over–voltage, over-temperature protection. The products meet CLASS A of CISPR32/EN55032 EMI standards by adding the recommended external components and they are widely used in applications such as battery powered systems, industrial controls, electricity, instrumentation, railway, communication and intelligent robotic.

URF48_QB-200WHR3
MORE
Loading...

Swipe to view all →
Produkte No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) 3D Impression Drawing (.stp) Certification Datasheet Sample Buy
URF4805QB-200WHR3 200 18~75 5 1 2250 DIP 61.8*40.2*27.7 - CE - URF4805QB-200WHR3 - sample request buy on line
URF4812QB-200WHR3 200 18~75 12 1 2250 DIP 61.8*40.2*27.7 - CE - URF4812QB-200WHR3 - sample request buy on line
URF4815QB-200WHR3 200 18~75 15 1 2250 DIP 61.8*40.2*27.7 - CE - URF4815QB-200WHR3 - sample request buy on line
URF4824QB-200WHR3 200 18~75 24 1 2250 DIP 61.8*40.2*27.7 - CE - URF4824QB-200WHR3 - sample request buy on line
URF4848QB-200WHR3 200 18~75 48 1 2250 DIP 61.8*40.2*27.7 - CE - URF4848QB-200WHR3 - sample request buy on line

* Referenzparameter. Technsiche Details entnehmen Sie bitte dem zugehörigen Datenblatt

Produkte No.
URF4805QB-200WHR3
URF4812QB-200WHR3
URF4815QB-200WHR3
URF4824QB-200WHR3
URF4848QB-200WHR3
