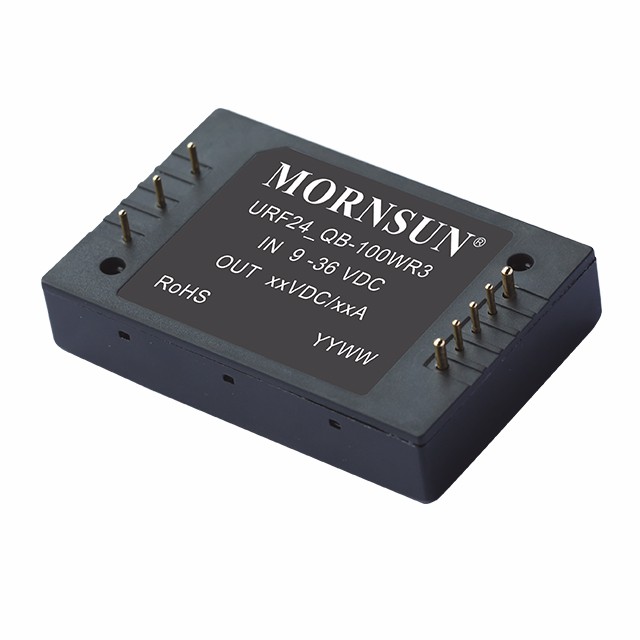

URF24_QB-100WFR3

Features

URF24_QB -100WFR3 series are isolated 100W DC-DC products with 4:1 input voltage. They feature efficiency up to 90%, 2250VDC input to output isolation, operating ambient temperature of -40℃ to +85℃, input under-voltage, output over–voltage, short-circuit, over-current protection, over-temperature protection. The products meet CLASS B of CISPR32/EN55032 EMI standards by adding the recommended external components, and they are widely used in applications such as battery powered systems, industrial controls, electricity, instrumentation, railway, communication.

URF24_QB-100WFR3
MORE
Loading...

Swipe to view all →
Produkte No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) 3D Impression Drawing (.stp) Certification Datasheet Sample Buy
URF2405QB-100WFR3 100 9~36 5 1 2250 DIP 62.0*56.0*14.6 URF_QB-100WFR3.stp CE - URF2405QB-100WFR3 - sample request buy on line
URF2412QB-100WFR3 100 9~36 12 1 2250 DIP 62.0*56.0*14.6 URF_QB-100WFR3.stp CE - URF2412QB-100WFR3 - sample request buy on line
URF2415QB-100WFR3 100 9~36 15 1 2250 DIP 62.0*56.0*14.6 URF_QB-100WFR3.stp CE - URF2415QB-100WFR3 - sample request buy on line
URF2424QB-100WFR3 100 9~36 24 1 2250 DIP 62.0*56.0*14.6 URF_QB-100WFR3.stp CE - URF2424QB-100WFR3 - sample request buy on line
URF2428QB-100WFR3 100 9~36 28 1 2250 DIP 62.0*56.0*14.6 URF_QB-100WFR3.stp CE - URF2428QB-100WFR3 - sample request buy on line
URF2448QB-100WFR3 100 9~36 48 1 2250 DIP 62.0*56.0*14.6 URF_QB-100WFR3.stp CE - URF2448QB-100WFR3 - sample request buy on line

* Referenzparameter. Technsiche Details entnehmen Sie bitte dem zugehörigen Datenblatt

Produkte No.
URF2405QB-100WFR3
URF2412QB-100WFR3
URF2415QB-100WFR3
URF2424QB-100WFR3
URF2428QB-100WFR3
URF2448QB-100WFR3
